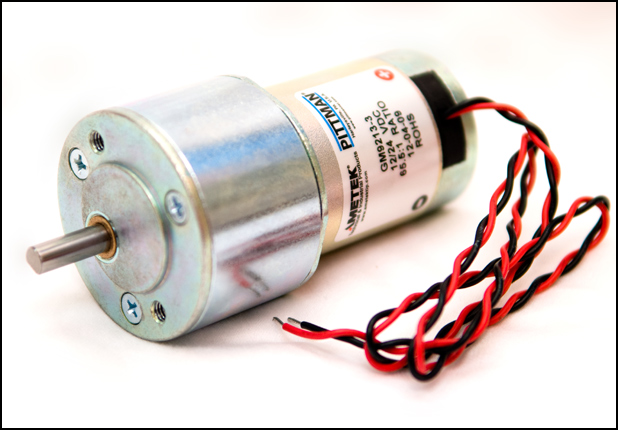

Ametek® Pittman® #GM9213-3
(GM9413-3 Replacement)
Lam Research # 676-000504-003 Rev.A |
IN STOCK!! |
|
|
 |
|
|
• Pittman® discontinued the GM9413-3 motor, this is Pittman's®
replacement model with an improved brush design. (See PDF)
• 1.58 inch motor diameter.
• 18-inch lead wires.
• 2.0 inch gearbox diameter.
• 3.476 inch overall length.
• 0.2495 inch shaft diameter with flat.
• 0.750 inch shaft length.
• 12/24 Volts DC.
• 65.5:1 gear ratio.
• 43 RPM no load speed.
• 136 ounce inches max torque.
• 326 ounce inches peak (stall) torque.
• RoHS.
• Upgraded GM9413-3
|
|
|
| Prices |
| Quantity |
Price Each |
| 1-4 |
$95.46 |
| 5-9 |
$90.91 |
| 10+ |
$86.58 |
|
|
|
|
|
|
